How to get a quote for Circuit Board Assembly (PCBA) Services?
1. PCBs Online Quote: You can get a PC board price instantly after a few option selections. All PCBs will be electrically tested. Click PCB Quote Online to get a quote now.
2. Labour Assembly online Quote: This is also an instant quote. You can get the labour assembly cost in seconds. Click PCB Assembly Quote to get a quote now.
3. BOM Pricing: Send your BOM (Bill of Materials) to email: [email protected] , we will email you the BOM price in 24 hours. BOM must include the quantities, reference designators, and manufacturer name and manufacturer part number.
4. If you already have your quote, then you are ready to place your order at your convenience!
See our comprehensive PCB Assembly Checklist for an overview of both the quotation and production processes.
Our Circuit Card Assembly Capabilities:
| Supported Capabilities | |
| Types of Assembly | THD (Thru-Hole Device) SMT (Surface-Mount Technology) SMT & THD mixed 2 sided SMT and THD assembly |
| Order quantity | 1 to 10,000 boards |
| Components | Passives parts, smallest size 0201 Fine pitch to 8 Mils BGA, uBGA, QFN,POP and Leadless chips Connectors and terminals |
| Component Package | Reels Cut tape Tube and tray Loose parts and bulk |
| Board dimensions | Smallest size: 0.2″ x 0.2″ Largest size: 15″ x 20″ |
| Board shape | Rectangular Round Slots and Cut outs Complex and Irregular |
| Board type | Rigid FR-4 Rigid-Flex boards |
| Assembly process | Leaded process Lead-Free (RoHS) |
| Design file format | Gerber RS-274X BOM (Bill of Materials) (.xls, .csv, . xlsx) Centroid (Pick-N-Place/XY file) |
| Sales and support | Emails Phone calls Web online quotation for PCB and assembly |
| Electrical testing | X-ray Inspection AOI (Automated Optical Inspection) Functional testing |
| Oven profile | Standard Custom |
| Turnaround time | 1-5 days for only PCB assembly 10-16 days for turnkey PCB assembly |
Testing Procedures
Various testing method will be applied to the assembled boards before the final shipment:
- Visual inspection: general quality check.
- FAI: full quality check applied to the first PCB to pass through all stages of production.
- X-ray Inspection: checks for BGAs, QFN and bare circuit boards.
- AOI Testing: checks for solder paste, 0201 components, missing components and polarity.
- 3D AOI Testing: checks for missing and misplaced SMT components in three dimensions.
- 3D SPI Testing: measures the precise volume of solder paste for SMT assembly.
- ICT (In-Circuit Test).
Functional test (Following your test procedures).

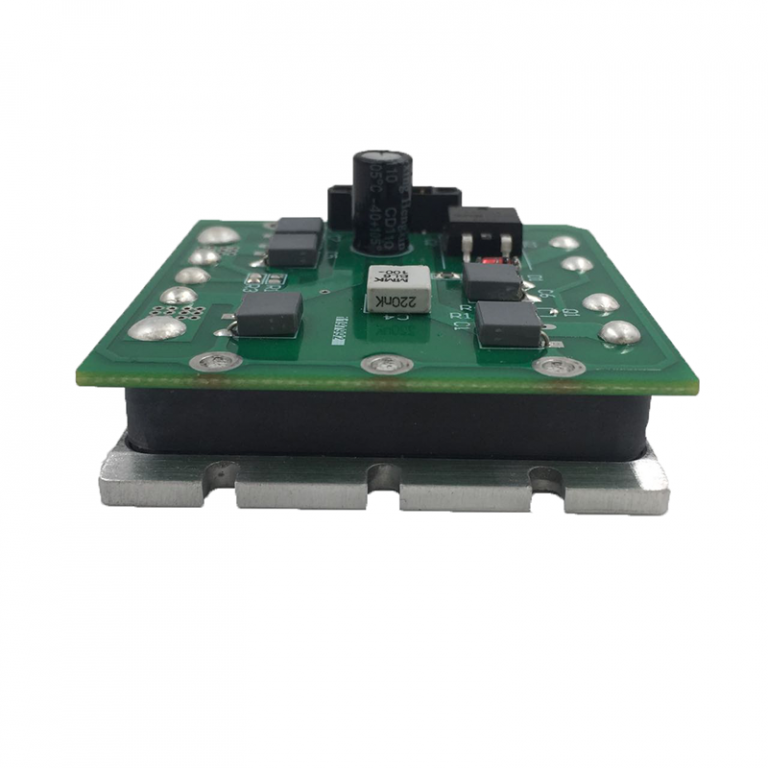

Double sided pcb assembly process
- Application of solder paste: First, solder paste (a small particle of solder paste mixed with flux) is applied to the board.
- Component placement: The precise placement of components into pre-planned areas of the board is performed by a robotic pick and place machine.
- Reflow: Pass the components with solder paste and the components on it through a conveyor belt through an industrial grade reflow oven.
- Inspection: After the reflow process, the PCB should be inspected to check its functionality.
- Through-hole component insertion: Certain types of PCBs require through-hole components to be inserted along with regular SMD components.
- Final Inspection: Functional test of the assembled board, or a thorough inspection of the PCB to monitor its electrical characteristics, including voltage, current or signal output. when
- Cleaning: Since the soldering process leaves a large amount of flux residue in the PCB, it is critical to thoroughly clean the components before shipping the final board to the customer.
ISO Certification
BETON PCB’s production facilities are ISO9001 certified to ensure we go beyond your expectations.
